OEM/ODM ARO TYPE MANUAL COUPLER, 3/8 ” BODY, STEEL Manufacturing Company

FEATURES

●Accepts ARO type plugs
●Heavy-duty, high-quality design
●Deep knurled socket sleeve for positive gripping
●Proven and positive connection using ballocking mechanism

APPLICATIONS

●Sleeve type couplings are widely used to connect air lines and can also be used with low pressure fluids.
●Their compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the
  locking groove on the mating nipple. The sliding spring loaded sleeve on the coupler must be manually retracted in         order  to connect or disconnect the nipple. It is easy to do but two hands are normally required.
●Common applications include: compressed air, water, grease, paint, limited vacuum and limited gases.

SPECIFICATIONS

CONSTRUCTION

●Socket Body: Brass, Steel, Stainless Steel
●Backnut: Brass, Steel, Stainless Steel
●Sleeve: Brass, Steel, Stainless Steel
Valve: Steel
Valve Spring: Steel, Stainless Steel
Locking Balls: Steel, Stainless Steel
●Seals: Buna-N/Nitrile
●Surface Finish: Copper color, Zinc-plated, Nickel-plated .

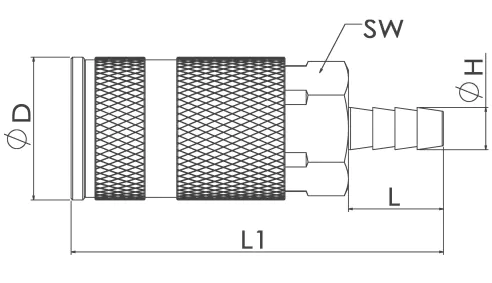

HOSE BARB
