OEM/ODM SHQ5 FLAT FACE TYPE HYDRAULIC QUICK COUPLING(STEEL) Manufacturing Company
SHQ5 FLAT FACE TYPE HYDRAULIC QUICK COUPLING(STEEL)
● TheSHQ5 Series couplings are widely used in the public utility market where hydraulic oil spillage can constitute a serious safety hazard, particularly in overhead bucket hoists that are used for maintenance of high-voltage power transmission lines These couplings are also for quick change of hydrarlic Tools in construction, railway maintenance and mining industries.● SHQ5 Series conforms to the standard of ISO 16028.● Compatible with PARKER FE Series, STUCCHIA8008 Series, AEROQUIP Fd89 Series and HANSEN Qa2900 Series.
Applications and Features
● TheSHQ5 Series couplings are widely used in the public utility market where hydraulic oil spillage can constitute a serious safety hazard, particularly in overhead bucket hoists that are used for maintenance of high-voltage power transmission lines These couplings are also for quick change of hydrarlic Tools in construction, railway maintenance and mining industries.
● SHQ5 Series conforms to the standard of ISO 16028.
● Compatible with PARKER FE Series, STUCCHIA8008 Series, AEROQUIP Fd89 Series and HANSEN Qa2900 Series.
SPECIFICATIONS
| Body Size(in.) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 |
| Rated Pressure(PSI) | 5000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 |
| Temperature Range(Std .seals) | -20℃ to+100℃ | |||||

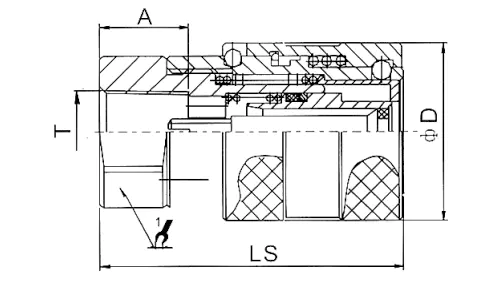

Socket
|
P/N |
LS |
ΦD |
1 |
A |
T |
|
|
SHQ5-02SF |
48 |
28 |
22 |
14 |
G1/4 |
NPT1/4 |
|
SHQ5-03SF |
64.2 |
32 |
27 |
16 |
G3/8 |
NPT3/8 |
|
SHQ5-04SF |
73.9 |
38 |
32 |
18 |
G1/2 |
NPT1/2 |
|
SHQ5-06SF |
78.9 |
42 |
36 |
19 |
G3/4 |
NPT3/4 |
|
SHQ5-08SF |
92.9 |
48 |
41 |
23 |
G1 |
NPT1 |
|
SHQ5-16SF |
107 |
56 |
55 |
24 |
G1-1/4 |
NPT1-1″ |
