Home / Products / AIR QUICK COUPLERS / EUROPE AIR QUICK COUPLERS / UNIVERSAL TYPE COUPLER,1/4 ” BODY,ALU.

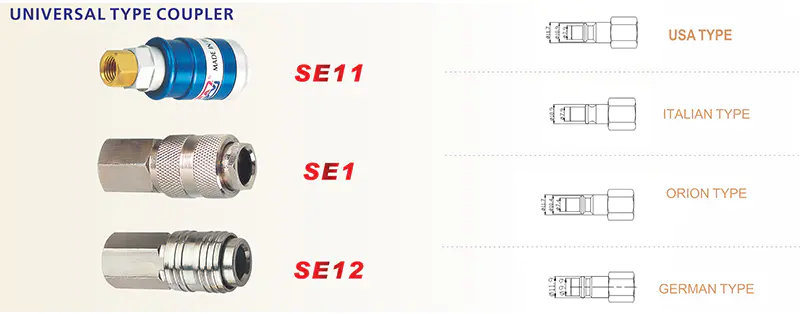

OEM/ODM UNIVERSAL TYPE COUPLER,1/4 ” BODY,ALU. Manufacturing Company
FEATURES
●Accepts GERMAN type,ITALIAN type,EURO type plugs
●Heavy-duty, high-quality design
●Deep knurled socket sleeve for positive gripping
●Proven and positive connection using ball-locking mechanism
SPECIFICATIONS
| Body Size(in.) | 1/4 |
| Rated Pressure(PSI) | 300 |
| Temperature Range(Std .seals)* | -40°to +250° F. |
| Locking Device | 6 balls |
CONSTRUCTION
●Socket Body: Brass,Steel
●Backnut: Brass,Steel
●Sleeve: Brass,Steel
Valve:Steel
●Valve Spring:Steel
Locking Balls: Steel
●Seals:Buna-N/Nitrile
●Surface Finish: Copper color,Zinc-plated,Nickel-plated
APPLICATIONS
Common applications include: compressed air, water, grease,
paint, limited vacuum and limited gases.
HOSE BARB
| P/N | L | ΦD | L1 | SW | ΦH |
| SE11-2SH | 77 | Φ30 | 16 | 19 | Φ6.35 |
| SE11-3SH | 79 | Φ30 | 18 | 19 | Φ8 |
| SE11-4SH | 81 | Φ30 | 20 | 19 | Φ10 |
